[rapi, zfs] How to install ZFS on Raspberry Pi

 How to install ZFS on Raspberry Pi

井民全, Jing, mqjing@gmail.com

1. Quick

lsblk #check all your block storage devices # umount all partitions sudo umount /dev/sda?; sudo wipefs --all --force /dev/sda?; sudo wipefs --all --force /dev/sda sudo umount /dev/sdb?; sudo wipefs --all --force /dev/sdb?; sudo wipefs --all --force /dev/sdb sudo umount /dev/sdc?; sudo wipefs --all --force /dev/sdc?; sudo wipefs --all --force /dev/sdc sudo umount /dev/sdd?; sudo wipefs --all --force /dev/sdd?; sudo wipefs --all --force /dev/sdd lsblk  # check no mount points # install zfs on your raspberry sudo apt install raspberrypi-kernel-headers sudo apt install zfs-dkms zfsutils-linux    # it takes time dmesg | grep ZFS  # check zfs module zfs --version  # check the zfs version # create a RAIDZ1 zpool sudo zpool create myzfspool raidz1 sda sdb sdc sdd -f lsblk # check the partitions for each devices zpool status # check the pool status # adding compression to the pool sudo zfs set compression=on myzfspool # setup mount point sudo zfs set mountpoint=/mnt/myzfspool myzfspool df -h #make sure linux can see it # create dataset on the pool sudo zfs create myzfspool/mydataset

2. Prepare the disks

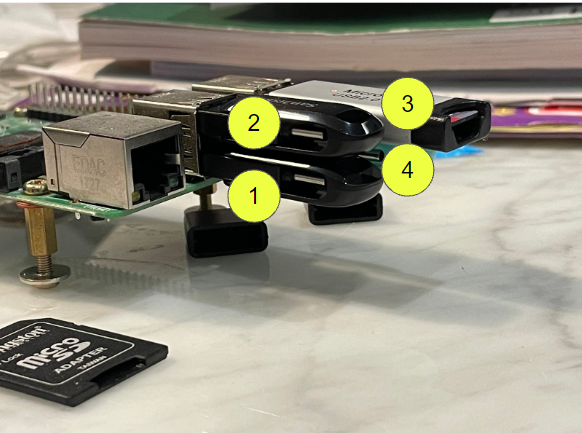

At least 3 disks for setup ZFS. Here, I prepared 4 devices.

(Edit)

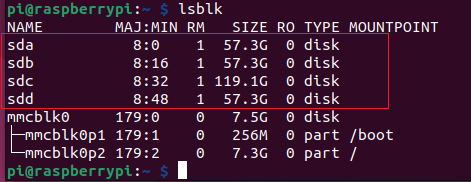

2.1. Check the disks

Command

lsblk

e.g.

2.2. Unmount and erase filesystem

sudo umount /dev/sda?; sudo wipefs --all --force /dev/sda?; sudo wipefs --all --force /dev/sda sudo umount /dev/sdb?; sudo wipefs --all --force /dev/sdb?; sudo wipefs --all --force /dev/sdb sudo umount /dev/sdc?; sudo wipefs --all --force /dev/sdc?; sudo wipefs --all --force /dev/sdc sudo umount /dev/sdd?; sudo wipefs --all --force /dev/sdd?; sudo wipefs --all --force /dev/sdd

Verification

Check, no disks were mounted.

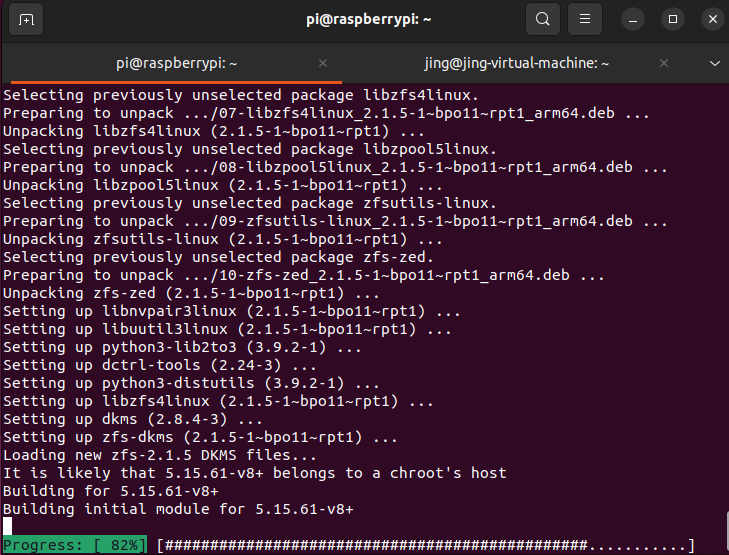

3. Install ZFS on your Raspberry PI

3.1. Procedure

Command

sudo apt install raspberrypi-kernel-headers sudo apt install zfs-dkms zfsutils-linux    # it takes time. (30 mins)

3.2. Verification

Test module

dmesg | grep ZFS

Check zfs version

zfs --version

4. Create a RAIDZ1 zpool

4.1. Procedure

Command

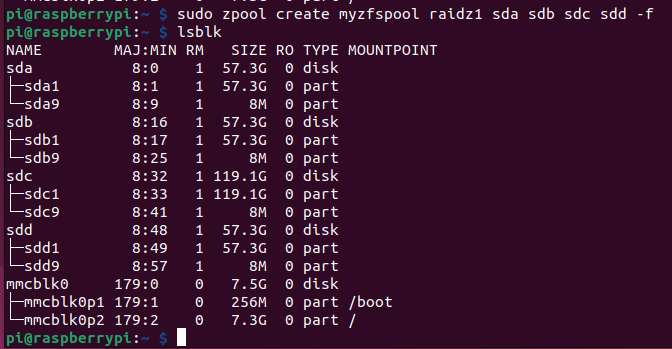

sudo zpool create myzfspool raidz1 sda sdb sdc sdd -f

Result

Check the partition. Zfs makes two partitions foreach on your devices, one is the ZFS pool which takes almost the entire space, in our case sda1, sdb1, sdc1 and sdd1. The second partition is for ZFS maintenance.

4.2. Check status

zpool status

5. Adding compression to the pool

sudo zfs set compression=on myzfspool

6. Setup mount point

6.1. Procedure

Comand

sudo zfs set mountpoint=/mnt/myzfspool myzfspool

e.g.

The dataset will be mounted on /mnt/myzfspool/mydataset.

6.2. Make sure Linux can see the pool.

df -h

7. Create dataset

Command

sudo zfs create myzfspool/mydataset

e.g.

8. Destroy pool

Command

sudo zpool destroy myzfspool

9. References

1. https://www.jeffgeerling.com/blog/2021/htgwa-create-zfs-raidz1-zpool-on-raspberry-pi

2. http://jenpeterson.net/zfs-blog/
