 How to install Raspberry Pi on QEMU on Windows

This document follows the proedures method by the document[1].

Table of Contents

1. Create the VM 1

2. Connect to the VM 4

3. References 6

1. Create the VM

Step 1: download the Image

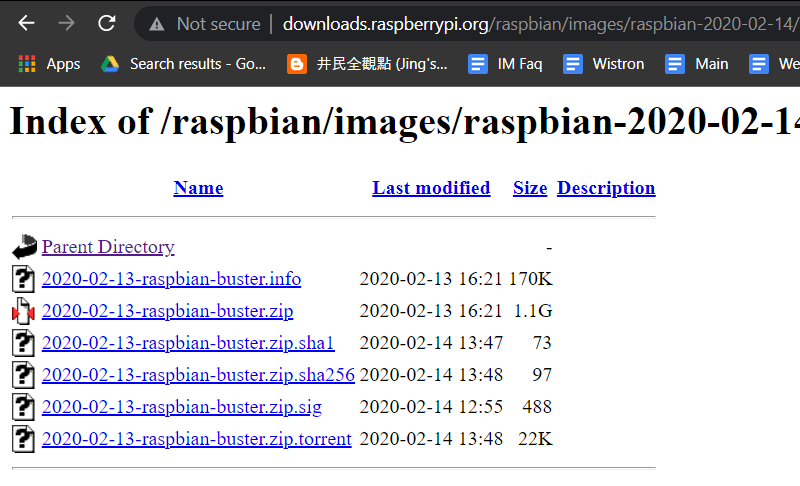

Loc: http://downloads.raspberrypi.org/raspbian/images/raspbian-2020-02-14/

File: 2020-02-13-raspbian-buster.zip

Step 2: Download Kernel

Loc: https://github.com/dhruvvyas90/qemu-rpi-kernel

Fiile: kernel-qemu-4.4.34-jessie

File: kernel-qemu-5.4.51-buster (found issue)

Step 3: Create a BAT file

File: 2020-02-13-raspbian-buster-ker-jessie.bat

"c:\Program Files\qemu\qemu-system-arm.exe" ^ -kernel  .\kernel-qemu-4.4.34-jessie ^ -cpu arm1176 ^ -m 256 ^ -M versatilepb ^ -serial stdio ^ -append "root=/dev/sda2 rootfstype=ext4 rw" ^ -hda .\2020-02-13-raspbian-buster.img ^ -net nic ^ -net user,hostfwd=tcp::5022-:22 ^ -no-reboot

The default network mode is NAT. In order to connect to the VM from Host, the hostfwd option was used. The command is ssh pi@localhost:5022

Result

2. Connect to the VM

Step 1: Enable the ssh Inteface

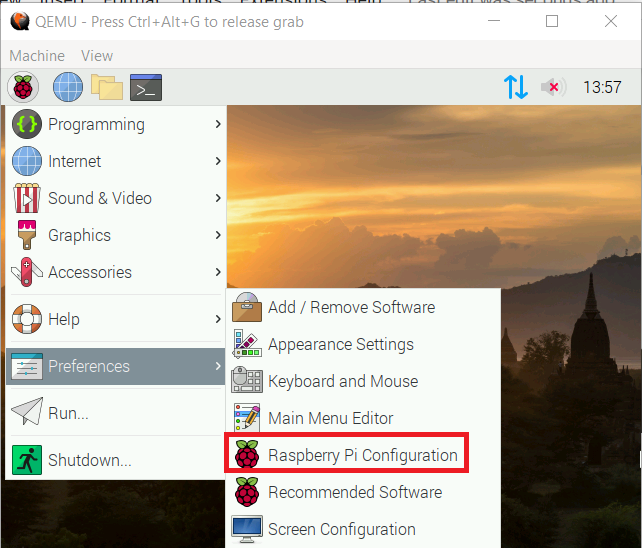

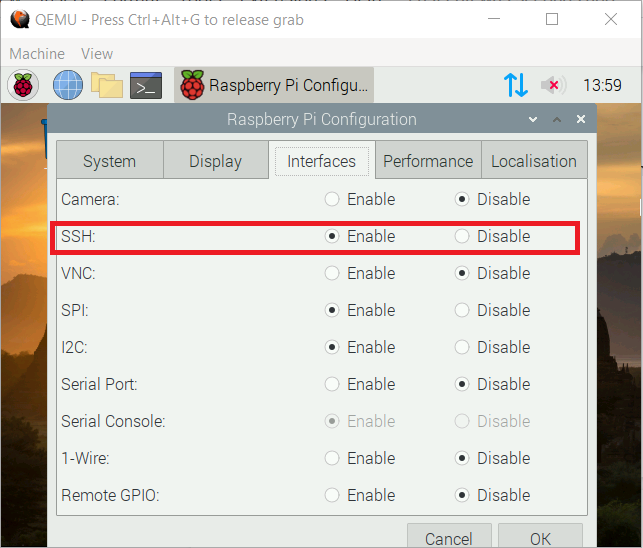

Menu -> [Perference] -> [Raspberry Pi Configuration]: Interfaces: ssh

Step 2: Connect to the PI using ssh

Command

ssh pi@localhost -p 5022

3. References

1. How to emulate a Raspbian OS in QEMU on Windows 10, https://dominoc925.blogspot.com/2019/09/how-to-emulate-raspbian-os-in-qemu-on.html
