How to set a X11 server for display the remote GUI app

井民全, Jing, mqjing@gmail.com

LT;DR

vscode:  Install Remote development Remote Machine: export DISPLAY= [your-local-host-ip]:0.0 Local Host: Install MobaXterm, launch it and wait. (the default X11 server was set as 0.0)

1. Setup the local host (Windows)

[Host] VSCode in Windows

Step 1: Enable the ssh remote forward

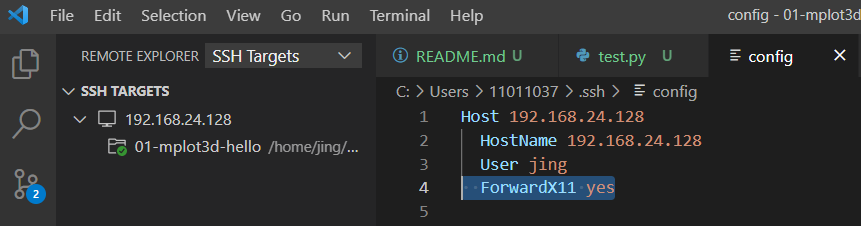

In vscode extension  [ssh remote], open the config

ForwardX11 yes

E.g.

Step 2: Install a X server

I choose the MobaXterm.

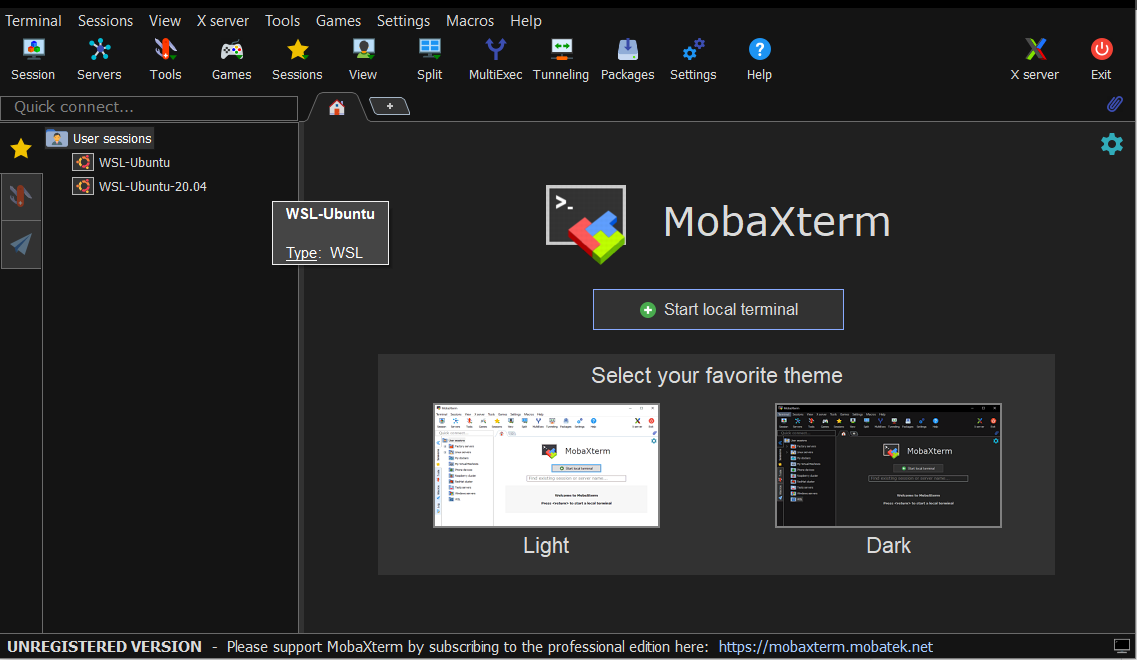

Step 3: Start the MobaXterm, and wait

2. Setup the Guest (Linux)

[Guest] Setup the Display for gui app

Option 1: Setup the variable

export DISPLAY= [your-host-ip]:0.0

ex

export DISPLAY=192.168.24.1:0.0

Option 2: Write to the ~/.zshrc

Command

vi  ~/.zshrc

File: ~/.zshrc

.... export DISPLAY=192.168.24.1:0.0

source ~/.zshrc

3. Verification

On Guest, we worte a simple python app that will show a 3D chart on screen.

3.1. Python code

Step 1: the demo 3D code

File: test.py

import matplotlib.pyplot as plt from mpl_toolkits.mplot3d import Axes3D fig = plt.figure() ax = fig.add_subplot(111, projection='3d') plt.show()

Step 2: Run

python test.py

3.2. Result

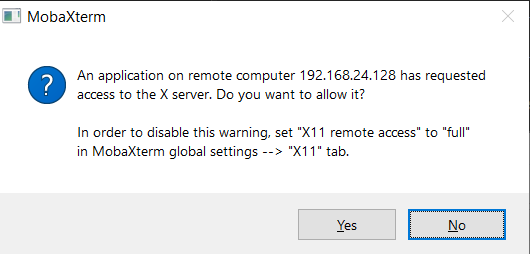

1. MobaXterm will prompt you a noti

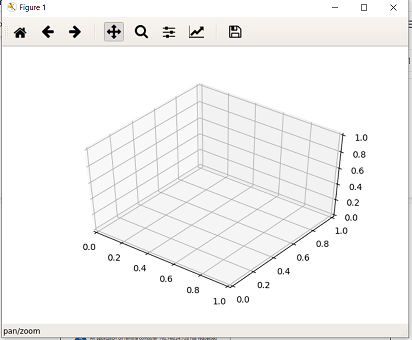

2. Show the result on host machine (Windows)



4. Reference

1. https://github.com/microsoft/vscode-remote-release/issues/267
