How to use GET method to access remote API using XMLHttpRequest with React client and Express server

Github: view

You can use XMLHttpRequest easily to send GET requests with parameters to the server. Here is an example, I used React as a client and Express as a server.

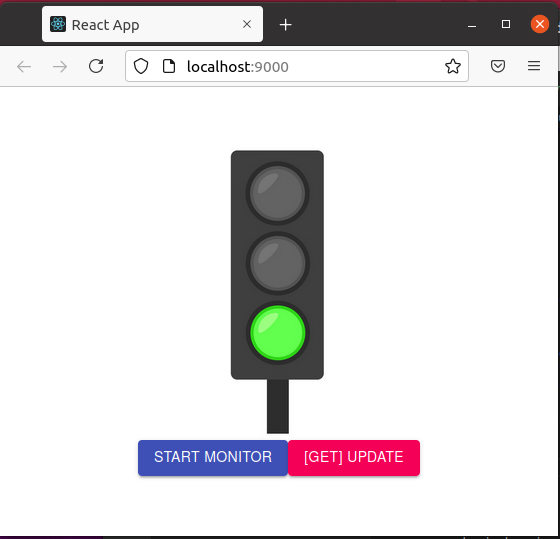

Fig. The system flow. (Edit)

Enjoy!

By Jing.

Quick

Client

let url = 'status-realtime/update' + '?parm1=value1&parm2=value2';

let xhr = new XMLHttpRequest();

xhr.open('GET', url);

xhr.send();

let url = 'status-realtime/update' + '?num=1&msg=hello';

let xhr = new XMLHttpRequest();

xhr.open('GET', url);

xhr.send();

Server

File: routes/xxxapi.ts

// api: /update

router.get('/update', function(req:Request, res:Response, next) {

// Step 1: Retrieve the parameters from client

let receivedNum = req.query.num; // get the para: num

let receivedMsg = req.query.msg; // get the para: msg

status.num = parseInt(receivedNum as string); // update

status.msg = receivedMsg as string; // update

console.log('/update. status = ' + JSON.stringify(status));

// Step 2: Response to client

res.send('ok')

});

Table of contents

1. Client (React)

2. Server (Express)

3. Install, Run, Test

3.4.1. Clean script: Server

3.4.2. Clean script: Client

4. References

5. Further Information

1. Client (React)

File: App.tsx (Partial code)

// Pass object type, return the GET parameters format

function getParamUrl<T>(para:T):string{

var url = '?';

let bFirst = false;

for (var key in para) {

if ((para as Object).hasOwnProperty(key)) {

url += (bFirst ? '&' : '') + key + "=" + para[key as keyof T];

}

bFirst = true;

}

return url;

}

function App() {

const urlUpdateApi:string = 'status/update'; // API: status/update

interface Status {

num: number;

msg: string;

}

let mystatus:Status = {num: 0, msg: 'init'};

const onUpdate = async () => {

// Step 1: Update status

mystatus.num++;

mystatus.msg = 'from onUpdate. (`${mystatus.num}`)';

console.log('[client] onUpdate, ' + JSON.stringify(mystatus));

// Step 2: Send to the server

let url = urlUpdateApi + getParamUrl(mystatus);

let xhr = new XMLHttpRequest();

xhr.open('GET', url);

xhr.send();

xhr.onload = function() {

if (xhr.status != 200) { // HTTP error?

console.log('[client] Error: xhr.status != 200' + xhr.status)

return;

}

// get the response from xhr.response

console.log('[client] xhr.response = ' + xhr.response);

};

xhr.onprogress = function(event) {

var percentComplete = event.loaded / event.total * 100;

console.log(`[client] xhr progress ${percentComplete}% complete.`);

};

xhr.onerror = function() {

console.log('[client] handle non-HTTP error (e.g. network down)');

};

}

const onStartMonitor = async () => {
    console.log('[client] onStartMonitor')
    const evtSource =new EventSource(urlStartMontorApi)

    // On status changed from server
    evtSource.onmessage = function(event) {
      const strNum:string = JSON.parse(event.data).num;
      let num:number = parseInt(strNum);
      console.log('[client] onmessage num = ' + num);
      (myimage.current as MyImage).changeLight(num%3);

      if (num == 20){
        console.log('[client] Early Stop, entSource.close')
        evtSource.close();
      }
    }
}

return (

<p>

<MyImage ref = {myimage} />
<Button onClick={onStartMonitor} variant="contained" color="primary"> Start Monitor </Button>

<Button onClick={onUpdate} variant="contained" color="secondary"> [GET] Update Status </Button>

</p>

</header>

</div>

);

)

2. Server (Express)

File: routes/status-api.ts

import express, {Request, Response} from 'express';

interface Status {

num: number;

msg: string;

}

let status:Status = {num: 0, msg: 'init'};

var router = express.Router();

// api: /status/update

router.get('/update', function(req:Request, res:Response, next) {

// Step 1: Retrieve the parameters from client

let receivedNum = req.query.num; // get the para: num

let receivedMsg = req.query.msg; // get the para: msg

status.num = parseInt(receivedNum as string); // update

status.msg = receivedMsg as string; // update

console.log('/update. status = ' + JSON.stringify(status));

// Step 2(opt): Sent back to client (SSE part)

if (resStream == null){

let strMsg:string = '[server] Warn::SSE do not setup, yet. Please click [Start Monitor]. Act: do not thing.';

console.log(strMsg);

res.send(strMsg)

return;

}

resStream.write(`data: ${JSON.stringify(status)}\n\n`);

// Step 3: Response to client

let strMsg:string = '[server] status update ok.';

console.log(strMsg);

res.send(strMsg)

});

// api: /status/start-monitor: Create server-sent-event back channel for client update status

let resStream:Response | null = null;

router.get('/start-monitor', function(req:Request, res:Response, next) {

if (resStream != null){

console.log('[Error] SSE already setup. Act: do not thing.');

return;

}

console.log('start-monitor');

resStream = res;

resStream.setHeader('Cache-Control', 'no-cache');

resStream.setHeader('Content-Type', 'text/event-stream');

resStream.setHeader('Access-Control-Allow-Origin', '*'); // ok for local

resStream.setHeader('Connection', 'keep-alive');

resStream.flushHeaders(); // flush the headers to establish SSE with client

resStream.write(`data: ${JSON.stringify(status)}\n\n`);

// If client closes connection, stop sending events

resStream.on('close', () => {

console.log('client dropped me');

// clearInterval(interValID);

(resStream as Response).end();

resStream = null;

console.log('res.end()');

});

module.exports = router;

File: index.ts

import express from 'express';

import path from 'path';

var statusRouter = require('./routes/status-api');

// var cors = require("cors");

const ReactBuildPath:string = '../client/build'; // the React client build folder

const app = express();

// handle cors

// app.use(cors());

// Register a middleware to serve files from the React production build folder: ../build

app.use(express.static(path.join(__dirname, ReactBuildPath)));

// Register a router statusAPIRouter on the virtual path /statusI.

app.use('/status', statusRouter);

// Register a middleware that handle GET request on the '/' to response React production index.html

app.get('/', function (req, res) {

res.sendFile(path.join(__dirname, ReactBuildPath + '/index.html'));

});

app.listen(9000);

console.log('Server: ok')

console.log('Test home: gio open http://localhost:9000/')

3. Install, Run, Test

3.1. Install

yarn --cwd ./server install

yarn --cwd ./client install

yarn --cwd ./client build

3.2. Run

cd server

tsc

node index.js

3.3. Test

gio open http://localhost:9000

3.4. Make clean

yarn --cwd ./server clean

yarn --cwd ./client clean

3.4.1. Clean script: Server

File: ./server/package.json

"clean": "rm -fr node_modules; find . -name \"*.js\" -type f|xargs rm -f; find . -name \"*.map\" -type f|xargs rm -f"

3.4.2. Clean script: Client

File: ./client/package.json

"clean": "(rm -fr node_modules; rm -fr build; find . -name \"*.js\" -type f|xargs rm -f; find . -name \"*.map\" -type f|xargs rm -f)"

4. References

Express 4.x - API Reference, http://expressjs.com/en/api.html#req.query
How To Use the req Object in Express, https://www.digitalocean.com/community/tutorials/nodejs-req-object-in-expressjs
XMLHttpRequest, https://javascript.info/xmlhttprequest
Using XMLHttpRequest, https://developer.mozilla.org/en-US/docs/Web/API/XMLHttpRequest/Using_XMLHttpRequest

5. Further Information

[react, express, deploy] How to deploy the React App with Express (view)
[react, express, restfulAPI] How to implement a restfulAPI using Express and React (view)
[react, express, sse] How to create server that streams events to the front-end client using Express and React**** (view), (blog)
[html, xhr, get] How to use GET method to access remote api using XMLHttpRequest with React client and Express server*** (view) <--- this document
